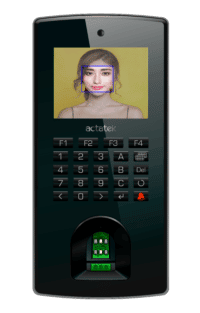

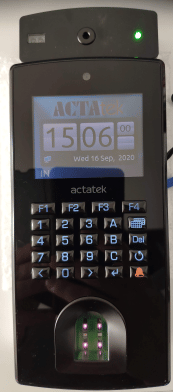

Biometrics IoTs – Facial
The biometrics unit comes with either fingerprint or facial recognition or both. One can also add the following built-in options: RFID reader, POE, WiFi, Barcode, QR code, CMOS camera, IP Intercom, GPS, and 3G module.
The device is encrypted with the latest encryption protocol, currently TLS1.3 with 256-bit encryption. All devices can be accessed and controlled using any web browser just like Internet banking!
- Embedded Web server for easy access via any browser
- Encrypted network communication (TLS1.3 with 256-bit encryption)

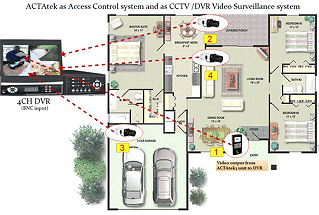

- Optional built-in CMOS/Video camera for Video Surveillance( system diagram)
Click Here For Live Demo
Like Us On Facebook
Download e-Brochure
Both fingerprint and facial recognition have optional live detection. It can support a maximum of 250,000 users and a maximum of 10 million event logs (depending upon the model).
Improve your business security and efficiency with the ACTA series of Biometrics, RFID, and IoT solutions: the best option for your offices and facilities. Improve your business security and efficiency with the ACTA series of Biometrics, RFID, and IoT solutions: the best option for your offices and facilities.
User-friendly, just like Internet banking, use any web browser on your PC, laptop, and mobile phone to access and manage all the applications. It is technology-proof with users, features and functions upgrade via software patches.
The device is protected by the latest TLS 1.3 256-bit encryption and continuous upgrade to protect your network. With optional PoE built-in, just a single CAT5-6 cable can deliver all the needs for the device as well as to the door strike. Coupled with online maintenance giving you tremendous savings on cabling costs, remote on-site maintenance, and travel expenses!
Easy to scale: you can install one today and thousands of units tomorrow! Simply plug and play on your network. The IP65 rating allows all-weather installations.
Following built-in options are available:
- IP Intercom: allows communications with any visitors at the door
- Wi-Fi -GSM/3G module for remote and mobile Internet connections (Q2 2019)
- GPS for tracking of the device (Q2 2019)
| Model: | Facial | Fingerprint | Smartcard | Fingerprint + Smartcard | Keypad | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Fingerprint Enrollment | Optional | Optional | Optional | ||||||||||
| Built-in smartcard reader | Optional | Optional | Optional | ||||||||||
| Face enrollment with video camera | Optional | Optional | Optional | Optional | |||||||||
| Live detection | Optional for Fingerprint & Facial Recognition | ||||||||||||
| Built-in web and database server | |||||||||||||
| Number of users | Basic 1,000 users can be upgrade to 100,000+ | ||||||||||||
| Max. transaction records stored (*depending on the model, on request only) |
1,000,000 logs/20,000 images | ||||||||||||
| Static IP address assignment | |||||||||||||
| Dynamic IP address assignment | |||||||||||||
| Power Over Ethernet (Built-in) | Optional(IEEE 802.3af standards) | ||||||||||||
| Resolution of LCD | 2.8″ 64K/256K Color TFT Screen 320 x 240 Pixel Resolution | ||||||||||||
| Non-volatile memory | 4 GB | ||||||||||||
| Computer OS support (with Internet browser) |
|
||||||||||||
| Valid characters of employee ID | 0-9, A-C (max. 16 characters) | ||||||||||||
| Programmable function keys support | F1, F2, F3, F4 | ||||||||||||
| Authentication time | < 1 second | ||||||||||||
| FingerPrint Users capacity | 250,000(1:1)/20,000(1:N) | ||||||||||||
| Face Users capacity | 50,000(1:1)/50,000(1:N) | ||||||||||||
| Alert | By Email and SMS, LCD Message Displayed | ||||||||||||
| Database interface support | ODBC/JDBC | ||||||||||||
| Encryption | AES 256-Bit (Continuous Upgrade) | ||||||||||||
| Multi-lingual support | Basic 1,000 users can be upgrade to 100,000+ | ||||||||||||
| Network interface (Built-in) | – 1,000 Base T Ethernet (Built-in)/SNMP support – WiFi IEEE 802.11 a/b/g/n/ac with 2.4G/5G |
||||||||||||

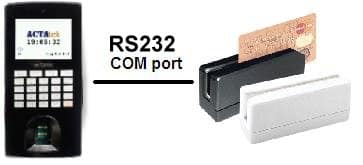

| I/O Interface | – RS-232/RS-485 – Wiegand output (26bit) – Power to strike, 12V DC at Max 500mA |
||||||||||||
| Export Report | CSV/Text file | ||||||||||||
| Remote Control | |||||||||||||
| Operation Temperature | -20 Degree C to 60 Degree C | ||||||||||||
| Modules | CPU/Fingerprint Mifare/Desfire HID Proximity HID iClass/FeliCa EM CEPAS Card(Singapore) CMOS/Video camera(Optional) |
RFID Card 13.56 MHz ISO14443A/B ISO15693 125kHz 13.56MHz Colour LCD & Keypad |
POE WiFi GSM/3G |
||||||||||
| Modes of Authentication | Fingerprint, Facial, Smartcard, PINID + Fingerprint, Facial + Fingerprint Smartcard + Fingerprint, Smartcard + FacialSmartcard + PIN |
||||||||||||
| Mobile | Optional Mobile Battery | ||||||||||||
| Relay/Doorbell Support | 1 Relay/1 Doorbell | ||||||||||||
| IP Intercom (Built-in) | Optional (SIP-enabled VoIP Intercom) | ||||||||||||
| GPS/GSM/3G Module (Built-in) | Optional | ||||||||||||
| Standards (FingerPrint/Facial) | FingerPrint: ISO 19794-2 template, ANSI/INCITS 378 template MINEX III PIV Level 2 Compliant, FBI Certified WSQ, STQC, ISO 19794-4 image Facial: Facial quailty: ISO/IEC 19794-5-2006, Image(FFI):ISO/IEC 19794-5 |
||||||||||||
| Safety standard/Casing | CE, FCC IP65-Fluid Ingress, Dust, Salt, Fog Protection |
||||||||||||

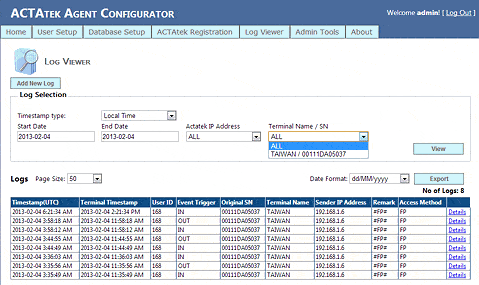

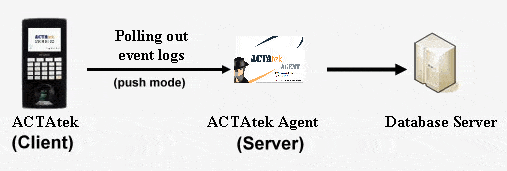

| Software Support | Agent2 (Standalone Mode) / Access Manager Suite** (Client-Server Mode) | ||||||||||||
| ** Access Manager Suite Software Requirements
|
Hardware Requirements
|
||||||||||||

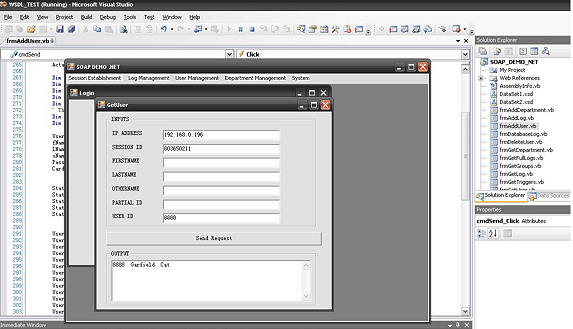

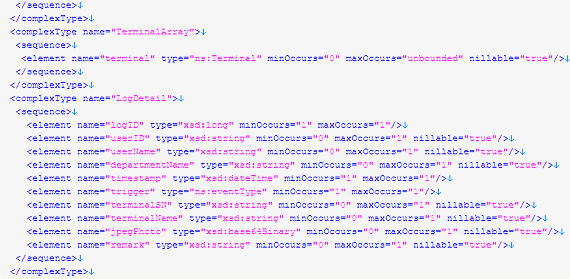

| (Note: Access Manager – SOAP/API will be provided for 3rd party integration | |||||||||||||
| ACTA series IoT devices – Options for additional functionality | |
|---|---|

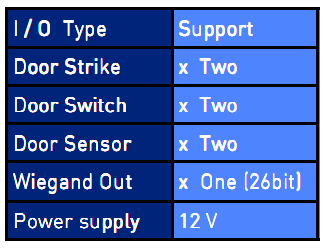

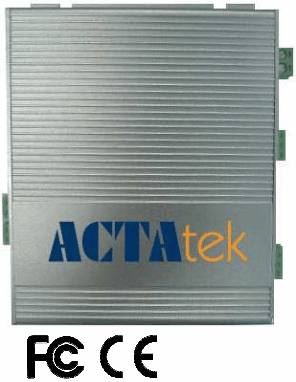

| External I/O board: can be installed/hidden inside the secure premises ensuring no direct access to door strike connections. |  |

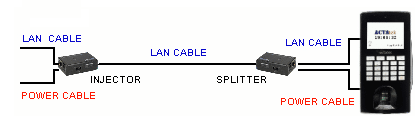

| Power Over Ethernet (PoE) splitter: to provide the unit with a 12V supply from Ethernet that has PoE capability. |  |
| Mobile Battery Kit: IP67 case and battery to power one ACTAtek in mobile applications. |  |

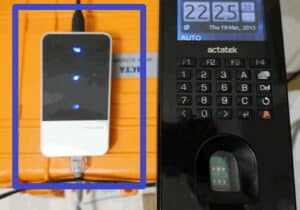

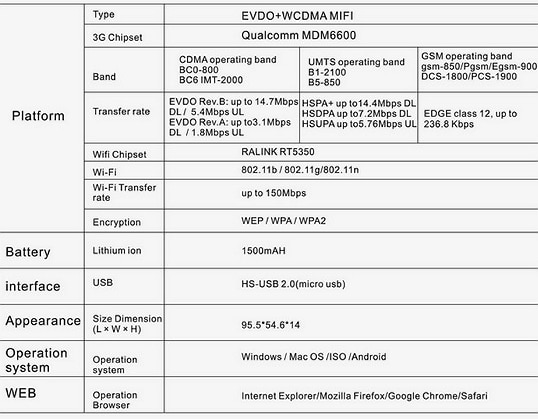

| 3G GSM / WiFi Gateway Modem. To provide cellular data connection in remote locations. Also offers a WiFi gateway. |  |

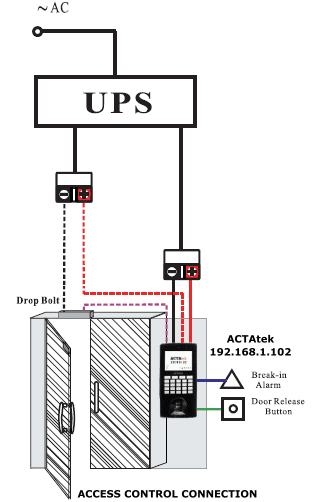

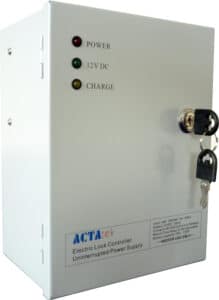

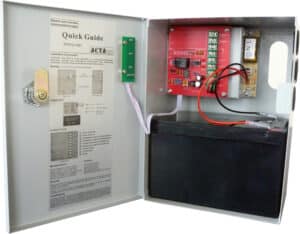

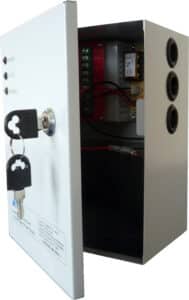

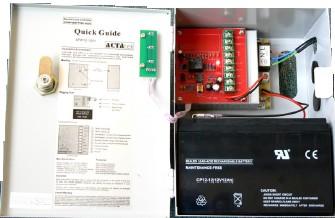

| UPS: a 12VDC/3A battery supply to maintain AC and TA integrity during power outages. |  |

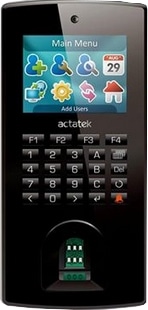

Fingerprint + Smartcard
Offering keypad PIN (Password), Smart Card and biometric Fingerprint Authentication options, the ACTAtek combination unit is used in both security (access control) and workforce management applications.
- Embedded Web server for easy access via any browser
- Encrypted network communication
- Optional built-in CMOS/Video camera for Video Surveillance( system diagram)
The ACTAtek Combination Unit is one of the most popular choices for both access control (AC) and time & attendance (TA) applications. Ease-of-use, no software installation and easy network connection create a simple yet sophisticated enterprise-wide platform for many system level software applications.
By combining biometric fingerprint, RFID smartcard, PIN (keypad) and a CMOS/Video camera, IT manager, security director and HR are able to select multiple way for users to authenticate for both AC and TA. A choice of smartcard readers is offered, enabling legacy card systems to be part of the new platform solution.
This unit is built for heavy use. An IP65 product operating over the extended temperature range, this unit will continue to deliver even in extreme weather conditions.
- Embedded software, no software installation necessary.
- State of the art embedded, encrypted Linux web server technology. Control, configure & administrate via web browser
- SSL encrypted communication between units & browser
- Real time system update & configuration
- 500DPI optical scanner
- Auto-match support up to 10,000 users (1:N)
- Operates in Standalone or Network modes(Access Manager)

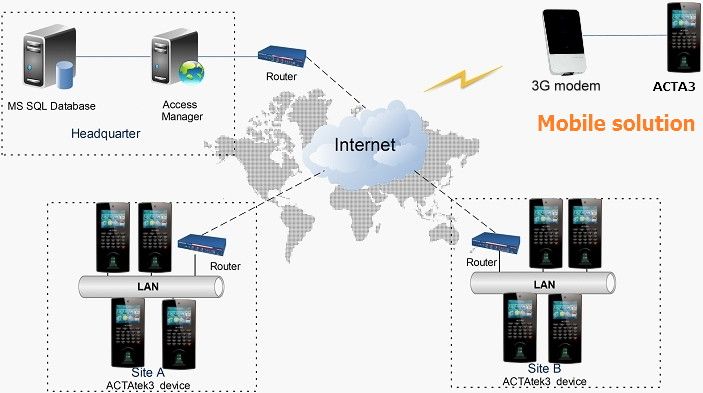

- Robust and scalable (thousands of users on global basis) for enterprise-wide deployment
- IP 65 rated, weather & impact resistant casing (fluid ingress, dust, salt, fog protection)
- Built-in CMOS/Video camera forVideo Surveillance(optional)
- Up to 500 photos (FIFO internal storage)
- API support for easy interface to most software applications
- 1,000, 3,000 , 5,000 ,10,000, 15,000 or 20,000 users
- Up to 75,000 event logs
- Five Modes of authentication
- Fingerprint only
- Smart Card only or Barcode only
- Smart Card + Fingerprint or Barcode + Fingerprint
- ID + Fingerprint, and
- ID + PIN.
- Multi-lingual interface (LCD & Web)
- Wiegand 26-bit output (Optional –External I/O board)
- Fingerprint image resolution: 500DPI
- False Rejection Rate (FRR): 0.01%
- False Acceptance Rate (FAR): 0.0001%
- Allowed fingerprint rotation: +/- 15 Degrees
- Matching speed: 0.05Sec
- Scanning speed: < 1 sec
Smartcard Reader Options:
| Description | Reading Distance | |
|---|---|---|
| MIFARE® | MIFARE® : ISO 14443A | 3 – 3.5 cm |
| HID | iClass ProxCard II ProxKey II ProxCard Plus Smart DuoProx II Smart ISOProx II DuoProx II ISOProx II MicroProx Tag(Supports formats of 26, 34, 35 & 37 bits)  |
3 – 3.5 cm 8 – 10 cm 3 – 5 cm 6 – 8 cm 6 – 8 cm 6 – 8 cm 6 – 8 cm 6 – 8 cm 3 – 5 cm |
| EM | EM4100 Compatible | 6 – 8 cm |
| Felica | SONY FeliCa® | 2 cm |
| CEPAS | CEPAS, Singapore Standard | <1 cm |
| ACTA series IoT devices – Options for additional functionality | |
|---|---|
| External I/O board: can be installed/hidden inside the secure premises ensuring no direct access to door strike connections. |  |

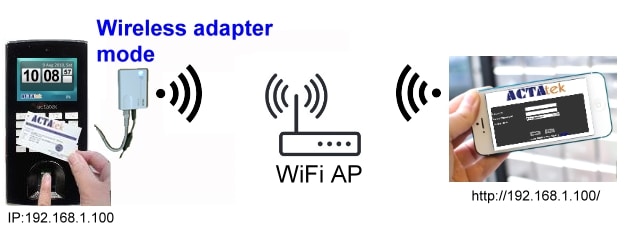

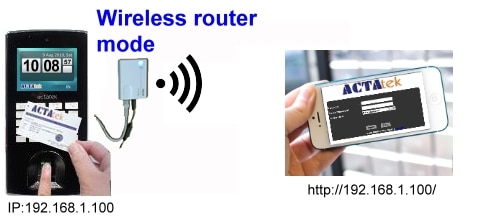

| WiFi Adaptor: To create a wireless network connection in WLAN environment |  |
| Power Over Ethernet (PoE) splitter: to provide the unit with a 12V supply from Ethernet that has PoE capability. | |
| Mobile Battery Kit: IP67 case and battery to power one ACTAtek in mobile applications. | |
| 3G GSM / WiFi Gateway Modem. To provide cellular data connection in remote locations. Also offers a WiFi gateway. |  |
| UPS: a 12VDC/3A battery supply to maintain AC and TA integrity during power outages. |  |
Fingerprint Scanner
Offering keypad PIN (Password), and biometric Fingerprint Authentication options, the ACTAtek FingerPrint unit is used in both security (access control) and workforce management applications.
- Embedded Web server for easy access via any browser
- Encrypted network communication
- Optional built-in CMOS/Video camera for Video Surveillance( system diagram)
ACTAtek Fingerprint only model is based on state of the art 500 dpi Optical Fingerprint Scanning Technology. The Fingerprint only model also supports an optional built-in CMOS/Video camera that can take snapshots of accepted or rejected attempts and store up to 500 photos directly in the ACTAtek database for viewing via the web interface/browser.Also,you can connect ACTAtek Video camera Output to LCD monitor or DVR for all-in-one Video Surveillance solution.
- Embedded software, no software installation necessary.
- State of the art embedded, encrypted Linux web server technology. Control, configure & administrate via web browser
- SSL encrypted communication between units & browser
- Real time system update & configuration
- 500DPI optical scanner
- Auto-match support up to 10,000 users (1:N)
- Operates in Standalone or Network mode (Access Manager)
- Robust and scalable (thousands of users on global basis) for enterprise-wide deployment
- IP 65 rated, weather & impact resistant casing (fluid ingress, dust, salt, fog protection)
- Built-in CMOS/Video camera for Video Surveillance(optional)
- Up to 500 photos (FIFO internal storage)
- API support for easy interface to most software applications
- 1,000, 3,000 , 5,000 ,10,000, 15,000 or 20,000 users
- Up to 75,000 event logs
- Five Modes of authentication
- Fingerprint only
- ID + Fingerprint, and
- ID + PIN.
- Multi-lingual interface (LCD & Web)
- Wiegand 26-bit output (Optional –External I/O board)
Scanner Features:
- Fingerprint image resolution: 500DPI
- False Rejection Rate (FRR): 0.01%
- False Acceptance Rate (FAR): 0.0001%
- Allowed fingerprint rotation: +/- 15 Degrees
- Matching speed: 0.05Sec
- Scanning speed: < 1 sec

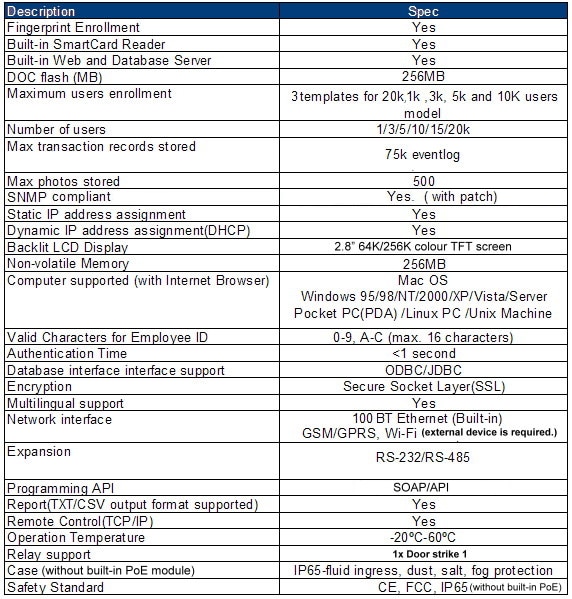

ACTAtek Fingerprint Unit Spec
| ACTA series IoT devices – Options for additional functionality | |
|---|---|
| External I/O board: can be installed/hidden inside the secure premises ensuring no direct access to door strike connections. | |
| WiFi Adaptor: To create a wireless network connection in WLAN environment | |
| Power Over Ethernet (PoE) splitter: to provide the unit with a 12V supply from Ethernet that has PoE capability. | |
| Mobile Battery Kit: IP67 case and battery to power one ACTAtek in mobile applications. | |
| 3G GSM / WiFi Gateway Modem. To provide cellular data connection in remote locations. Also offers a WiFi gateway. | |
| UPS: a 12VDC/3A battery supply to maintain AC and TA integrity during power outages. | |
LogiPrint
ACTAtek LogiPrint is a USB device which can be used for remote user Fingerprint enrollment using ACTAtek Time Attendance (ACTAtek TA) or remote desktop enrollment software at PC.
With ACTAtek LogiPrint technology, the user can easily do the remote user registration with Fingerprint enrollments at one PC first and then update the user Fingerprint data to all ACTAtek terminals.
The LogiPrint can work together with the ACTAtek by enabling administrators to enroll users via the ACTAtek Time Attendance software (ACTAtek TA)– a proprietary software that allows you to add / modify / delete users, download logs, generate late and attendance reports.
- Compatibility: Compatible with ACTAtek Fingerprint(FAM model) or Combination model
- Convenience: Remote User Fingerprint enrollment at the HQ site and then push the user FP data to the Remote site ACTAtek device.
-
Advanced CMOS camera technology and precise optical system design
- Fingerprint scanning window size is 16x24mm
- Fingerprint captured is 150K pixels(480×320)
- Image resolution is 508 DPI
- USB 1.1 compatible interface, plug and play device
- With a 2M standard USB cable
- Small size, 45 x 63 x 26 mm
- Light weight, 80 gram
- Operation temperature: 0 to +55 Degree Celsius
Electrical characteristics
- Light source: Infrared LED
- Supply voltage: DC 4.5-5.5V via USB port
- Power consumption:
- active <550mW(during scanning)
- standby <400mW(when scanner is connected PC but no scanning)
- sleep mode <15mW(activated by standard USB bus event only)
- ESD contact – 8KV
-
Air discharge – 16KV no permanent damage

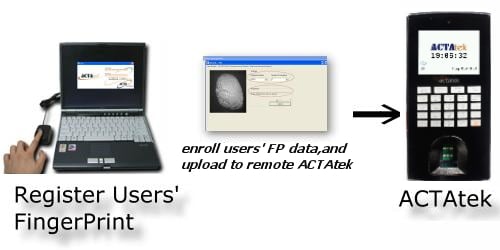

Below is the sample diagram on how ACTAtek LogiPrint ca work with ACTAtek TA to do users’ Fingerprint enrollment and upload to remote ACTAtek device (FAM model).
ACTAtek Smartcard – MIFARE®
Offering keypad PIN (Password) and MIFARE® Smartcard, the unit is used in both security (access control) and workforce management applications.
- Embedded Web server for easy access via any browser
- Encrypted network communication
- Optional built-in CMOS/Video camera for Video Surveillance( system diagram)
- Optional Open-MIFARE® unit
ACTAtek Smartcard only model which supports MIFARE® Card platforms.
ACTAtek Smart Card only model also supports an optional built-in CMOS/Video camera that can take snapshots of accepted or rejected attempts and store up to 500 photos directly in the ACTAtek database for viewing via the web interface/browser.Also,you can connect ACTAtek Video camera Output to LCD monitor or DVR for all-in-one Video Surveillance solution.
- Embedded software, no software installation necessary.
- State of the art embedded, encrypted Linux web server technology. Control, configure & administrate via web browser
- SSL encrypted communication between units & browser
- Real time system update & configuration
- Operates in Standalone or Network modes(Access Manager)
- Robust and scalable (thousands of users on global basis) for enterprise-wide deployment
- IP 65 rated, weather & impact resistant casing (fluid ingress, dust, salt, fog protection)
- Built-in CMOS/Video camera for Video Surveillance(optional)
- Up to 500 photos (FIFO internal storage)
- API support for easy interface to most software applications
- 1,000, 3,000 , 5,000 ,10,000, 15,000 , 20,000 or 30,000 users
- Up to 75,000 event logs
- Three Modes of authentication
- Smart Card only or Barcode only
- Smard Card+PIN
- ID + PIN.
- Multi-lingual interface (LCD & Web)
- Wiegand 26-bit output (Optional –External I/O board)
- Copy or Move Users’ FingerPrint Template to ACTAtek MIFARE® Classic Card ***
**** Feature only available on ACTAtek Combination Models (FingerPrint+MIFARE® Smart Card Model)****
| Description | Reading Distance | |
|---|---|---|
| MIFARE® | MIFARE® : ISO 14443A 13.56 MHz | 3 – 3.5 cm |
ACTAtek Smart Card Unit Spec
| Description | Spec |
|---|---|
| Built-in SmartCard Reader | Yes |
| Built-in Web and Database Server | Yes |
| DOC flash (MB) | 256 |
| Number of users | 1/3/5/10/15/20/30k |
| Max transaction records stored | 10k eventlog for 10k, 15k, 20k and 30k users model 75k eventlog for 1k ,3k and 5k users model |
| Max photos stored | 500 |
| SNMP compliant | Yes. (with patch) |
| Static IP address assignment | Yes |
| Dynamic IP address assignment(DHCP) | Yes |
| Backlit LCD Display | 2.8” 64K/256K colour TFT screen |
| Non-volatile Memory | 256MB |
| Computer supported (with Internet Browser) | Mac OS Windows 95/98/NT/2000/XP/Vista/Server Pocket PC(PDA) /Linux PC /Unix Machine |
| Valid Characters for Employee ID | 0-9, A-C (max. 16 characters) |
| Authentication Time | <1 second |
| Database interface interface support | ODBC/JDBC |
| Encryption | Secure Socket Layer(SSL) |
| Multilingual support | Yes |
| Network interface | 100BT Ethernet (Built-in) GSM/GPRS, Wi-Fi |
| Expansion | RS-232/RS-485 |
| Programming API | SOAP API |
| Report(TXT/CSV output format supported) | Yes |
| Remote Control(TCP/IP) | Yes |
| Operation Temperature | -20ºC-60ºC |

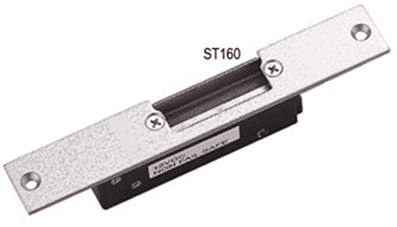

| Relay support | 1x Door strike 1 |
| Case(without built-in PoE module) | IP65-fluid ingress, dust, salt, fog protection |
| Safety Standard | CE, FCC, IP65(without built-in PoE) |
| ACTA series IoT devices – Options for additional functionality | |
|---|---|
| Smartcard cards and fobs: for use with the embedded smartcard reader. |  |
| WiFi Adaptor: To create a wireless network connection in WLAN environment | |
| Power Over Ethernet (PoE) splitter: to provide the unit with a 12V supply from Ethernet that has PoE capability. | |
| Mobile Battery Kit: IP67 case and battery to power one ACTAtek in mobile applications. | |
| 3G GSM / WiFi Gateway Modem. To provide cellular data connection in remote locations. Also offers a WiFi gateway. | |
| UPS: a 12VDC/3A battery supply to maintain AC and TA integrity during power outages. | |
ACTAtek Smartcard – HID Proximity
Offering keypad PIN (Password) and HID Proximity Smartcard, the unit is used in both security (access control) and workforce management applications.
- Embedded Web server for easy access via any browser
- Encrypted network communication
- Optional built-in CMOS/Video camera for Video Surveillance( system diagram)
ACTAtek Smartcard only model which supports HID Proximity Card platforms.
ACTAtek Smart Card only model also supports an optional built-in CMOS camera that can take snapshots of accepted or rejected attempts and store up to 500 photos directly in the ACTAtek database for viewing via the web interface/browser.Also,you can connect ACTAtek Video camera Output to LCD monitor or DVR for all-in-one Video Surveillance solution.
- Embedded software, no software installation necessary.
- State of the art embedded, encrypted Linux web server technology. Control, configure & administrate via web browser
- SSL encrypted communication between units & browser
- Real time system update & configuration

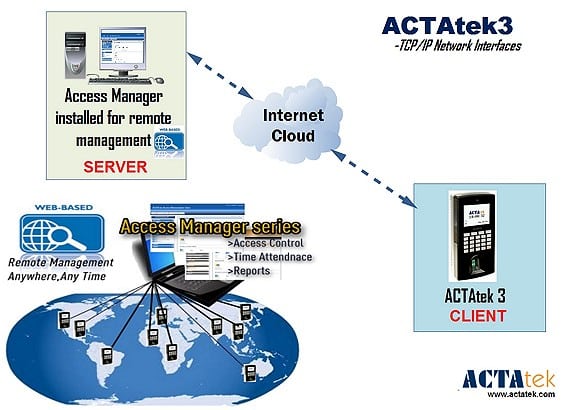

- Operates in Standalone or Network modes(Access Manager)
- Robust and scalable (thousands of users on global basis) for enterprise-wide deployment
- IP 65 rated, weather & impact resistant casing (fluid ingress, dust, salt, fog protection)
- Built-in CMOS/Video camera for Video Surveillance(optional)
- Up to 500 photos (FIFO internal storage)

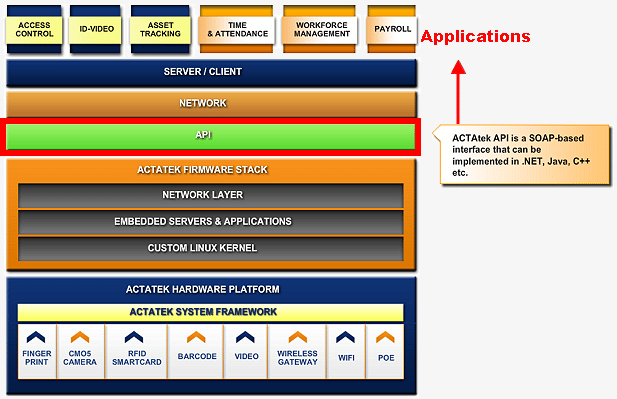

- API support for easy interface to most software applications
- 1,000, 3,000 , 5,000 ,10,000, 15,000 , 20,000 or 30,000 users
- Up to 75,000 event logs
- Three Modes of authentication
- Smart Card only or Barcode only
- Smard Card+PIN
- ID + PIN.
- Multi-lingual interface (LCD & Web)
- Wiegand 26-bit output (Optional –External I/O board)
Smartcard Reader Option
| Description | Reading Distance | |
|---|---|---|
| HID | ProxCard II ProxKey II ProxCard Plus Smart DuoProx II Smart ISOProx II DuoProx II ISOProx II MicroProx Tag (Supports formats of 26, 34, 35 & 37 bit)  |
3 – 3.5 cm 8 – 10 cm 3 – 5 cm 6 – 8 cm 6 – 8 cm 6 – 8 cm 6 – 8 cm 6 – 8 cm 3 – 5 cm |
ACTAtek Smart Card Unit Spec
| Description | Spec |
|---|---|
| Built-in SmartCard Reader | Yes |
| Built-in Web and Database Server | Yes |
| DOC flash (MB) | 256 |
| Number of users | 1/3/5/10/15/20/30k |
| Max transaction records stored | 10k eventlog for 10k, 15k, 20k and 30k users model 75k eventlog for 1k ,3k and 5k users model |
| Max photos stored | 500 |
| SNMP compliant | Yes. (with patch) |
| Static IP address assignment | Yes |
| Dynamic IP address assignment(DHCP) | Yes |
| Backlit LCD Display(128×64) | Yes |
| Non-volatile Memory | 256MB |
| Computer supported (with Internet Browser) | Mac OS Windows 95/98/NT/2000/XP/Vista/Server Pocket PC(PDA) /Linux PC /Unix Machine |
| Valid Characters for Employee ID | 0-9, A-C (max. 16 characters) |
| Authentication Time | <1 second |
| Database interface interface support | ODBC/JDBC |
| Encryption | Secure Socket Layer(SSL) |
| Multilingual support | Yes |
| Network interface | 100BT Ethernet (Built-in) GSM/GPRS, Wi-Fi (external device is required) |
| Expansion | RS-232/RS-485 |
| Programming API | Access Manager SOAP API |
| Report(TXT/CSV output format supported) | Yes |
| Remote Control(TCP/IP) | Yes |
| Operation Temperature | -20ºC-60ºC |
| Relay support | 1x Door strike 1 |
| Case(without built-in PoE module) | IP65-fluid ingress, dust, salt, fog protection |
| Safety Standard | CE, FCC, IP65(without built-in PoE) |
| ACTA series IoT devices – Options for additional functionality | |
|---|---|
| Smartcard cards: for use with the embedded smartcard reader. | |
| WiFi Adaptor: To create a wireless network connection in WLAN environment | |
| Power Over Ethernet (PoE) splitter: to provide the unit with a 12V supply from Ethernet that has PoE capability. | |
| Mobile Battery Kit: IP67 case and battery to power one ACTAtek in mobile applications. | |
| 3G GSM / WiFi Gateway Modem. To provide cellular data connection in remote locations. Also offers a WiFi gateway. | |
| UPS: a 12VDC/3A battery supply to maintain AC and TA integrity during power outages. | |
ACTAtek Smartcard – HID iClass
Offering keypad PIN (Password) and HID iClass Smartcard, the unit is used in both security (access control) and workforce management applications.
- Embedded Web server for easy access via any browser
- Encrypted network communication
- Optional built-in CMOS/Video camera for Video Surveillance( system diagram)
ACTAtek Smartcard only model which supports HID iClass Card platforms.
ACTAtek Smart Card only model also supports an optional built-in CMOS camera that can take snapshots of accepted or rejected attempts and store up to 500 photos directly in the ACTAtek database for viewing via the web interface/browser.Also,you can connect ACTAtek Video camera Output to LCD monitor or DVR for all-in-one Video Surveillance solution.
- Embedded software, no software installation necessary.
- State of the art embedded, encrypted Linux web server technology. Control, configure & administrate via web browser
- SSL encrypted communication between units & browser
- Real time system update & configuration
- Operates in Standalone or Network modes(Access Manager)
- Robust and scalable (thousands of users on global basis) for enterprise-wide deployment
- IP 65 rated, weather & impact resistant casing (fluid ingress, dust, salt, fog protection)
- Built-in CMOS/Video camera for Video Surveillance(optional)
- Up to 500 photos (FIFO internal storage)
- API support for easy interface to most software applications
- 1,000, 3,000 , 5,000 ,10,000, 15,000 , 20,000 or 30,000 users
- Up to 75,000 event logs
- Three Modes of authentication
- Smart Card only or Barcode only
- Smard Card+PIN
- ID + PIN.
- Multi-lingual interface (LCD & Web)
- Wiegand 26-bit output (Optional –External I/O board)
Smartcard Reader Option
| Description | Reading Distance | |
|---|---|---|
| HID | iclass |
3 – 3.5 cm |
ACTAtek Smart Card Unit Spec
| Description | Spec |
|---|---|
| Built-in SmartCard Reader | Yes |
| Built-in Web and Database Server | Yes |
| DOC flash (MB) | 256 |
| Number of users | 1/3/5/10/15/20/30k |
| Max transaction records stored | 10k eventlog for 10k, 15k, 20k and 30k users model 75k eventlog for 1k ,3k and 5k users model |
| Max photos stored | 500 |
| SNMP compliant | Yes. (with patch) |
| Static IP address assignment | Yes |
| Dynamic IP address assignment(DHCP) | Yes |
| Backlit LCD Display | 2.8” 64K/256K colour TFT screen |
| Non-volatile Memory | 256MB |
| Computer supported (with Internet Browser) | Mac OS Windows 95/98/NT/2000/XP/Vista/Server Pocket PC(PDA) /Linux PC /Unix Machine |
| Valid Characters for Employee ID | 0-9, A-C (max. 16 characters) |
| Authentication Time | <1 second |
| Database interface interface support | ODBC/JDBC |
| Encryption | Secure Socket Layer(SSL) |
| Multilingual support | Yes |
| Network interface | 100BT Ethernet (Built-in) GSM/GPRS, Wi-Fi (external device is required) |
| Expansion | RS-232/RS-485 |
| Programming API | SOAP API |
| Report(TXT/CSV output format supported) | Yes |
| Remote Control(TCP/IP) | Yes |
| Operation Temperature | -20ºC-60ºC |
| Relay support | 1x Door strike 1 |
| Case(without built-in PoE module) | IP65-fluid ingress, dust, salt, fog protection |
| Safety Standard | CE, FCC, IP65(without built-in PoE) |
| ACTA series IoT devices – Options for additional functionality | |
|---|---|
| Smartcard cards: for use with the embedded smartcard reader. | |
| WiFi Adaptor: To create a wireless network connection in WLAN environment | |
| Power Over Ethernet (PoE) splitter: to provide the unit with a 12V supply from Ethernet that has PoE capability. | |
| Mobile Battery Kit: IP67 case and battery to power one ACTAtek in mobile applications. | |
| 3G GSM / WiFi Gateway Modem. To provide cellular data connection in remote locations. Also offers a WiFi gateway. | |
| UPS: a 12VDC/3A battery supply to maintain AC and TA integrity during power outages. | |
ACTAtek Smartcard – CePAS
Offering keypad PIN (Password) and CePAS Smartcard, the unit is used in both security (access control) and workforce management applications.
- Embedded Web server for easy access via any browser
- Encrypted network communication
- Optional built-in CMOS/Video camera for Video Surveillance( system diagram)
ACTAtek Smartcard only model with CEPAS Card platform support.
ACTAtek Smart Card only model also supports an optional built-in CMOS camera that can take snapshots of accepted or rejected attempts and store up to 500 photos directly in the ACTAtek database for viewing via the web interface/browser.Also,you can connect ACTAtek Video camera Output to LCD monitor or DVR for all-in-one Video Surveillance solution.
- Embedded software, no software installation necessary.
- State of the art embedded, encrypted Linux web server technology. Control, configure & administrate via web browser
- SSL encrypted communication between units & browser
- Real time system update & configuration
- Operates in Standalone or Network modes(Access Manager)
- Robust and scalable (thousands of users on global basis) for enterprise-wide deployment
- IP 65 rated, weather & impact resistant casing (fluid ingress, dust, salt, fog protection)
- Built-in CMOS/Video camera for Video Surveillance(optional)
- Up to 500 photos (FIFO internal storage)
- API support for easy interface to most software applications
- 1,000, 3,000 , 5,000 ,10,000, 15,000 , 20,000 or 30,000 users
- Up to 75,000 event logs
- Three Modes of authentication
- Smart Card only or Barcode only
- Smard Card+PIN
- ID + PIN.
- Multi-lingual interface (LCD & Web)
- Wiegand 26-bit output (Optional –External I/O board)
Smartcard Reader Option
| Description | Reading Distance | |
|---|---|---|
| CEPAS | CEPAS, Singapore Standard | <3 cm |
ACTAtek Smart Card Unit Spec
| Description | Spec |
|---|---|
| Built-in SmartCard Reader | Yes |
| Built-in Web and Database Server | Yes |
| DOC flash (MB) | 256 |
| Number of users | 1/3/5/10/15/20/30k |
| Max transaction records stored | 10k eventlog for 10k, 15k, 20k and 30k users model 75k eventlog for 1k ,3k and 5k users model |
| Max photos stored | 500 |
| SNMP compliant | Yes. (with patch) |
| Static IP address assignment | Yes |
| Dynamic IP address assignment(DHCP) | Yes |
| Backlit LCD Display | 2.8” 64K/256K colour TFT screen |
| Non-volatile Memory | 256MB |
| Computer supported (with Internet Browser) | Mac OS Windows 95/98/NT/2000/XP/Vista/Server Pocket PC(PDA) /Linux PC /Unix Machine |
| Valid Characters for Employee ID | 0-9, A-C (max. 16 characters) |
| Authentication Time | <1 second |
| Database interface interface support | ODBC/JDBC |
| Encryption | Secure Socket Layer(SSL) |
| Multilingual support | Yes |
| Network interface | 100 BT Ethernet (Built-in) GSM/GPRS, Wi-Fi, Modem (external device is required) |
| Expansion | RS-232/RS-485 |
| Programming API | SOAP API |
| Report(TXT/CSV output format supported) | Yes |
| Remote Control(TCP/IP) | Yes |
| Operation Temperature | -20ºC-60ºC |
| Relay support | 1x Door strike 1 |
| Case(without built-in PoE module) | IP65-fluid ingress, dust, salt, fog protection |
| Safety Standard | CE, FCC, IP65(without built-in PoE) |
| ACTA series IoT devices – Options for additional functionality | |
|---|---|
| Smartcard cards: for use with the embedded smartcard reader. | |
| WiFi Adaptor: To create a wireless network connection in WLAN environment | |
| Power Over Ethernet (PoE) splitter: to provide the unit with a 12V supply from Ethernet that has PoE capability. | |
| Mobile Battery Kit: IP67 case and battery to power one ACTAtek in mobile applications. | |
| 3G GSM / WiFi Gateway Modem. To provide cellular data connection in remote locations. Also offers a WiFi gateway. | |
| UPS: a 12VDC/3A battery supply to maintain AC and TA integrity during power outages. | |
ACTAtek Smartcard – EM
Offering keypad PIN (Password) and EM Smartcard, the unit is used in both security (access control) and workforce management applications.
- Embedded Web server for easy access via any browser
- Encrypted network communication
- Optional built-in CMOS/Video camera for Video Surveillance( system diagram)
ACTAtek Smartcard only model which supports EM Card platforms.
ACTAtek Smart Card only model also supports an optional built-in CMOS camera that can take snapshots of accepted or rejected attempts and store up to 500 photos directly in the ACTAtek database for viewing via the web interface/browser.Also,you can connect ACTAtek Video camera Output to LCD monitor or DVR for all-in-one Video Surveillance solution.
- Embedded software, no software installation necessary.
- State of the art embedded, encrypted Linux web server technology. Control, configure & administrate via web browser
- SSL encrypted communication between units & browser
- Real time system update & configuration
- Operates in Standalone or Network modes(Access Manager)
- Robust and scalable (thousands of users on global basis) for enterprise-wide deployment
- IP 65 rated, weather & impact resistant casing (fluid ingress, dust, salt, fog protection)
- Built-in CMOS/Video camera for Video Surveillance(optional)
- Up to 500 photos (FIFO internal storage)
- API support for easy interface to most software applications
- 1,000, 3,000 , 5,000 ,10,000, 15,000 , 20,000 or 30,000 users
- Up to 75,000 event logs
- Three Modes of authentication
- Smart Card only or Barcode only
- Smard Card+PIN
- ID + PIN.
- Multi-lingual interface (LCD & Web)
- Wiegand 26-bit output (Optional –External I/O board)
Smartcard Reader Option
| Description | Reading Distance | |
|---|---|---|
| EM | EM4100 Compatible | 6 – 8 cm |
ACTAtek Smart Card Unit Spec
| Description | Spec |
|---|---|
| Built-in SmartCard Reader | Yes |
| Built-in Web and Database Server | Yes |
| DOC flash (MB) | 256 |
| Number of users | 1/3/5/10/15/20/30k |
| Max transaction records stored | 10k eventlog for 10k, 15k, 20k and 30k users model 75k eventlog for 1k ,3k and 5k users model |
| Max photos stored | 500 |
| SNMP compliant | Yes. (with patch) |
| Static IP address assignment | Yes |
| Dynamic IP address assignment(DHCP) | Yes |
| Backlit LCD Display | 2.8” 64K/256K colour TFT screen |
| Non-volatile Memory | 256MB |
| Computer supported (with Internet Browser) | Mac OS Windows 95/98/NT/2000/XP/Vista/Server Pocket PC(PDA) /Linux PC /Unix Machine |
| Valid Characters for Employee ID | 0-9, A-C (max. 16 characters) |
| Authentication Time | <1 second |
| Database interface interface support | ODBC/JDBC |
| Encryption | Secure Socket Layer(SSL) |
| Multilingual support | Yes |
| Network interface | 100BT Ethernet (Built-in) GSM/GPRS, Wi-Fi (external device is required) |
| Expansion | RS-232/RS-485 |
| Programming API | SOAP API |
| Report(TXT/CSV output format supported) | Yes |
| Remote Control(TCP/IP) | Yes |
| Operation Temperature | -20ºC-60ºC |
| Relay support | 1x Door strike 1 |
| Case(without built-in PoE module) | IP65-fluid ingress, dust, salt, fog protection |
| Safety Standard | CE, FCC, IP65(without built-in PoE) |
| ACTA series IoT devices – Options for additional functionality | |
|---|---|
| Smartcard cards: for use with the embedded smartcard reader. | |
| WiFi Adaptor: To create a wireless network connection in WLAN environment | |
| Power Over Ethernet (PoE) splitter: to provide the unit with a 12V supply from Ethernet that has PoE capability. | |
| Mobile Battery Kit: IP67 case and battery to power one ACTAtek in mobile applications. | |
| 3G GSM / WiFi Gateway Modem. To provide cellular data connection in remote locations. Also offers a WiFi gateway. | |
| UPS: a 12VDC/3A battery supply to maintain AC and TA integrity during power outages. | |
BARCODE UNIT
Offering keypad PIN (Password), and Barcode slot reader, the unit is used in both security (access control) and workforce management applications.
- Embedded Web server for easy access via any browser
- Encrypted network communication
- Optional built-in CMOS/Video camera for Video Surveillance( system diagram)

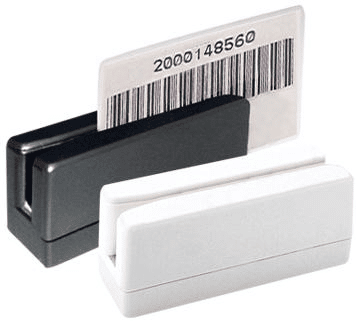

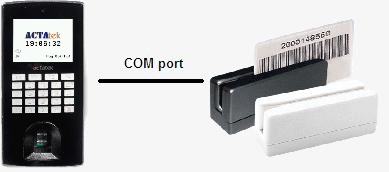

- External Barcode slot reader was required to connect to ACTAtek3 Barcode unit via RS232.
ACTAtek Barcode model which supports to read the customers’ existing barcode cards via the external barcode slot reader.
-
- Embedded software, no software installation necessary.
- State of the art embedded, encrypted Linux web server technology. Control, configure & administrate via web browser
- SSL encrypted communication between units & browser
- Real time system update & configuration
- Operates in Standalone or Network modes(Access Manager)
- Robust and scalable (thousands of users on global basis) for enterprise-wide deployment
- IP 65 rated, weather & impact resistant casing (fluid ingress, dust, salt, fog protection)
- Built-in CMOS/Video camera for Video Surveillance(optional)
- Up to 500 photos (FIFO internal storage)
- API support for easy interface to most software applications
- 1,000, 3,000 , 5,000 ,10,000, 15,000 , 20,000 or 30,000 users
- Up to 75,000 event logs
- Three Modes of authentication
- Barcode only
- Barcode +PIN
- PIN.
- Multi-lingual interface (LCD & Web)
- Wiegand 26-bit output (Optional –External I/O board)
| Description | Spec |
|---|---|
| Built-in SmartCard Reader | Yes |
| Built-in Web and Database Server | Yes |
| DOC flash (MB) | 256 |
| Number of users | 1/3/5/10/15/20/30k |
| Max transaction records stored | 10k eventlog for 10k, 15k, 20k and 30k users model 75k eventlog for 1k ,3k and 5k users model |
| Max photos stored | 500 |
| SNMP compliant | Yes. (with patch) |
| Static IP address assignment | Yes |
| Dynamic IP address assignment(DHCP) | Yes |
| Backlit LCD Display | 2.8” 64K/256K colour TFT screen |
| Non-volatile Memory | 256MB |
| Computer supported (with Internet Browser) | Mac OS Windows 95/98/NT/2000/XP/Vista/Server Pocket PC(PDA) /Linux PC /Unix Machine |
| Valid Characters for Employee ID | 0-9, A-C (max. 16 characters) |
| Authentication Time | <1 second |
| Database interface interface support | ODBC/JDBC |
| Encryption | Secure Socket Layer(SSL) |
| Multilingual support | Yes |
| Network interface | 100BT Ethernet (Built-in) GSM/GPRS, Wi-Fi |
| Expansion | RS-232/RS-485 |
| Programming API | SOAP API |
| Report(TXT/CSV output format supported) | Yes |
| Remote Control(TCP/IP) | Yes |
| Operation Temperature | -20ºC-60ºC |
| Relay support | 1x Door strike 1 |
| Case(without built-in PoE module) | IP65-fluid ingress, dust, salt, fog protection |
| Safety Standard | CE, FCC, IP65(without built-in PoE) |
| ACTA series IoT devices – Options for additional functionality | |
|---|---|
| Smartcard cards: for use with the embedded smartcard reader. | |
| WiFi Adaptor: To create a wireless network connection in WLAN environment | |
| Power Over Ethernet (PoE) splitter: to provide the unit with a 12V supply from Ethernet that has PoE capability. | |
| Mobile Battery Kit: IP67 case and battery to power one ACTAtek in mobile applications. | |
| 3G GSM / WiFi Gateway Modem. To provide cellular data connection in remote locations. Also offers a WiFi gateway. | |
| UPS: a 12VDC/3A battery supply to maintain AC and TA integrity during power outages. | |
Smartcard reader – MIFARE®
The ACTAtek MIFARE® External Reader(IP based) is completely compatible with the ACTAtek Biometric and MIFARE® Smartcard units. Providing TCP/IP port creates a cost effective means of deploying access control to multiple doors which the administrator will be able to do the remote management via the web-based Access Manager from HQ.
- LED indication of power/grant & deny access/network status
- Small and attractive form factor
- IP65 compliant
- Enroll Smart Card through Web UI (no additional software required)
- Access Manager support
WiFi Adaptor: To create a wireless network connection in WLAN environment
The ACTAtek External MIFARE® Card Reader(IP based) has a relay output to operate a door control. Access is granted or denied through authentication via the MIFARE® smartcard.
Registration and card writing is via the master ACTAtek Unit to update user data with Access Manager or you can Login to device’s Web UI to enroll the Smart Card for the user.Smartcards registered via the master ACTAtek unit will be immediately readable at any readers which were registered with Access Manager.
The following diagram shows how the external readers form part of a fully networked solution.
The ACTAtek External MIFARE® Reader(IP based) is an attractive, small, cost effective unit that can be used as a means of extending the ID management platform from a full biometric or smartcard access control system to additional card authentication door access control or time and attendance system.
- Easy installation with IP65 compliant
- Fully integrated into the ACTAtek web-based applications
- Seamless and transparent data gathering in real-time
- Enroll Smart Card users through Web UI (no additional software required)
- Access Manager support
- ACTAtek support 4 Byte e.g.MIFARE® Classic card,and 7 Byte e.g.MIFARE® Ultralight card . (***Product model no.:ACTA3er-1K-SH2Ma.***)
| ACTA series IoT devices – Options for additional functionality | |||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|||||||||||||||||||||||||||
| ACTA series IoT devices – Options for additional functionality | |
|---|---|
| WiFi Adaptor: To create a wireless network connection in WLAN environment |  |
| Power Over Ethernet (PoE) splitter: to provide the unit with a 12V supply from Ethernet that has PoE capability. | |
| Mobile Battery Kit: IP67 case and battery to power ACTAtek device or IP reader under mobile applications. | |
| V220 GSM Gateway: To provide cellular data connection in remote locations. Also offers WiFi gateway. |  |
| UPS: a 12VDC/3A battery supply to maintain AC and TA integrity during power outages. |  |
Smartcard reader – EM
The ACTAtek EM External Reader(IP baed) is completely compatible with the ACTAtek Biometric and EM Smartcard units. Providing TCP/IP port creates a cost effective means of deploying access control to multiple doors which the administrator will be able to do the remote management via the web-based Access Manager from HQ.
- LED indication of power/grant & deny access/network status
- Small and attractive form factor
- IP65 compliant
- Enroll Smart Card through Web UI (no additional software required)
- Access Manager support
WiFi Adaptor: To create a wireless network connection in WLAN environment
The ACTAtek External MIFARE® Card Reader(IP based) has a relay output to operate a door control. Access is granted or denied through authentication via the MIFARE® smartcard.
Registration and card writing is via the master ACTAtek Unit to update user data with Access Manager or you can Login to device’s Web UI to enroll the Smart Card for the user.Smartcards registered via the master ACTAtek unit will be immediately readable at any readers which were registered with Access Manager.
The following diagram shows how the external readers form part of a fully networked solution.
The ACTAtek External MIFARE® Reader(IP based) is an attractive, small, cost effective unit that can be used as a means of extending the ID management platform from a full biometric or smartcard access control system to additional card authentication door access control or time and attendance system.
- Easy installation with IP65 compliant
- Fully integrated into the ACTAtek web-based applications
- Seamless and transparent data gathering in real-time
- Enroll Smart Card users through Web UI (no additional software required)
- Access Manager support
- ACTAtek support 4 Byte e.g.MIFARE® Classic card,and 7 Byte e.g.MIFARE® Ultralight card . (***Product model no.:ACTA3er-1K-SH2Ma.***)
| ACTA series IoT devices – Options for additional functionality | |
|---|---|
| Voltage |
12V (+9V … +30V) |
| Current Consumption |
100 mA max. |
| Carrier frequency | Mobile Battery Kit: IP67 case and battery to power one ACTAtek in mobile applications. |
| Operating distance | 0 to 8 cm depending on the card type |
| Reader Type | EM Card Reader Support |
| Interfaces | 100BaseT |
| IP Certification | IP65 rated |
| Dimensions | 85 x 115 x 30 mm (LxWxH) |
| Operating Temperature | -25°C – +65°C |
| Humidity | Up to 100% |
| Buzzer | Buzzer alert for accepted and rejected attempts. |
| Output | 1x Door strike ;1X Door switch |
| Certificates | FCC , CE |
| ACTA series IoT devices – Options for additional functionality | |
|---|---|
| WiFi Adaptor: To create a wireless network connection in WLAN environment | |
| Power Over Ethernet (PoE) splitter: to provide the unit with a 12V supply from Ethernet that has PoE capability. | |
| Mobile Battery Kit: IP67 case and battery to power one ACTAtek in mobile applications. | |
| V220 GSM Gateway: To provide cellular data connection in remote locations. Also offers WiFi gateway. | |
| UPS: a 12VDC/3A battery supply to maintain AC and TA integrity during power outages. | |

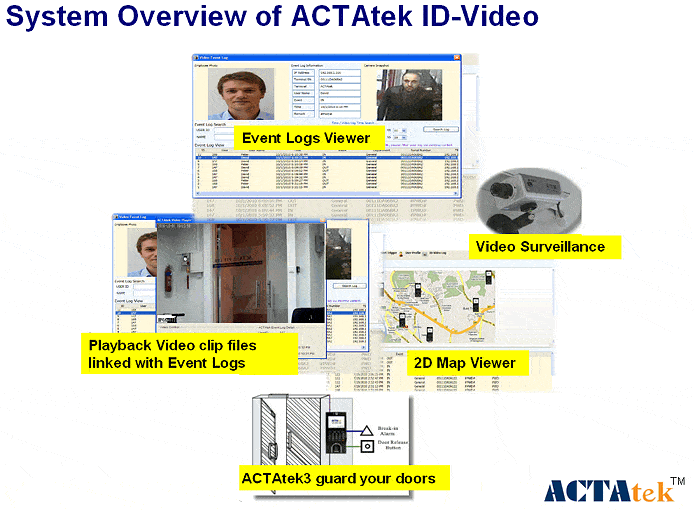

ID-Video Software Suite
ACTAtek ID-Video Software Suite
The video surveillance market has many products available that monitor, capture and analyze video streams. ACTAtek takes this one step further by integrating the biometric authentication event with the video stream.
The ID-Video Software Suite has several components:
- System setup – basic requirements such as identifying and binding the ACTAtek units with the HD IP Camera, database initializing and video storage options.
- Video surveillance – basic functions of simultaneous viewing of multiple IP cameras, and manual recording of the video stream.
- ACTAtek Map – a 2-D mapping capability (users supplied map image of camera/ACTAtek locations) that allows placement of all camera and ACTAtek icons. The icons then become “live” allowing any camera to be viewed, or ACTAtek unit event log to be viewed by selection of the icon.

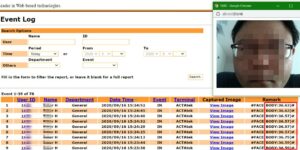

- ACTAtek real time event log – This is the heart of the software. Authentication events are time-stamped to the video stream and highlighted in the event log table, in real time.
When a user initiates an authentication from any ACTAtek unit (fingerprint, RFID smartcard or PIN) in the network, the video stream from the ACTAtek camera is time-stamped. The result is an application that shows the ACTAtek event log, CMOS camera image and a selectable video option to see the authentication event.(eg.10 seconds before and after, this period could be user specified ). Searches can be performed for specific ACTAtek units, ID logs, individuals, specific days, time and so on – a powerful tool for security directors!
These features allow Security Directors to review potential “tail-gating” where one authentication and door open event results in multiple entry.
- Tightly integrates with ACTAtek’s award winning ID Management Platform.
- Combines benefits of Access Control, Time Attendance and Video Monitoring in one solution.
- IP Web Based Technology allows surveillance from any location in the World with WAN connection.
- Easy upgrade to any exisitng ACTAtek installation!
Remote Power – Battery
The ACTAtek Remote Power-Battery comprises the Mobile Kit and the Mobile battery.
Mobile Battery
ACTAtek mobile battery features a portable long-lasting and rechargeable power source design, to ensure ACTAtek can be operated anytime and anywhere. This allows mobile biometric ID management for security forces at remote locations where conventional power is not available.
Mobile Kit
ACTAtek mobile battery features a portable long-lasting and rechargeable power source design, to ensure ACTAtek can be operated anytime and anywhere. This allows mobile biometric ID management for security forces at remote locations where conventional power is not available.
- Remote time recording without any restrictions
- Easy to carry
- Long lasting mobile battery life
- Water proof, dust proof, and shock proof
Mobile Battery Specifications
| Features | Technical Specification |
| Type | Lithium Ion |
| Operating Temperature | 20 to +55 Degrees Celsius |
| Charging | DC 12V / 1.1A Voltage DC 12V |
| Capacity | 1100mAh |
| Charging Time | Approx. 4 Hours |
| Average continuous operation with ACTATek connected | 6 hours |
| Weight | 160g |
| Dimension | 11cm x 6.5cm x 2cm |
Mobile Kit (with ACTAtek) Specifications
| Features | Technical Specification |
| Type | Super ABS |
| Certificates | CE, FC, IP 67 with impact resistance |
| Weight (ACTAtek and battery) | 1.3kg |
| Dimension | 27cm x 22cm x 9cm |
| ACTAtek Remote Power-Battery for mobile solution | |
|---|---|
| Mobile Battery Kit: IP67 case and battery to power one ACTAtek in mobile applications. |  |
| 3G GSM / WiFi Gateway Modem: To provide cellular data connection in remote locations. Also offers WiFi gateway. |  |
Uninterupted Power Supply (UPS)
When Businesses demand critical uptime for their Time Attendance and Security Access Control devices, the ACTAtek UPS (Uninterruptible Power Supply) unit delivers constant reliable power supply and added surge protection to protect your devices from power-related damages and the inconvenience with loss of use on times you need it most.
- Robust,12VDC/3A power supply
- Supply ACTAtek units or other esssential equipment
- Essential in installations where known power interuptions are an issue
The ACTAtek UPS is enclosed in a heavy duty case to prevent vandal attacks and harsh environmental conditions, but comes with the convenience of wall mountable holes and key lock for added security. Also the ACTAtek UPS has an in built secure external relay and electronic door lock control enabling consistent security functions even when the power is out for many hours. The battery in the UPS has the operational ability of up to 16 hours* without charge and is completely maintenance free as the unit will self charge once it detects an available power source.
Protection
– Over-Voltage protection
– Over-Current protection
– Short circuit protection
– Over charge protection
– Over discharge protection
– Self-recovery when fault condition remove
- Heavy duty casing protecting the UPS from harsh environmental conditions and vandal attacks.
- Wall mountable and added key lock for security and convenience.
- Inbuilt Electronic Door Lock controller and Secure Relay, allowing continuous door security use of up to 10 hours.
- Heavy duty battery with AGM (Anti Glass Mat) technology, enabling higher resistance to voltage spikes and temperatures while having the benefits of longer battery life.
- Virtually maintenance free, battery recharges itself when the UPS detects a power source.
| Description | Technical Specification |
|---|---|
| Battery Type | VRLA |
| Supply Voltage | 100-240VAC, 50/60Hz |
| Output | 13.5VDC, +/- 2%, 3Amps (max) |
| Battery Capacity | 12VDC, 7Ah/12Ah |
| Operating Temperature | 0 to 45 Degrees Celsius |
| Humidity | Up to 95% non-condensing |
| Batttery Change Time | 18-36 hours |
| Average continuous operation (on ACTAtek unit) | 12Ah: 10-16 hours |
| Average continuous operation with ACTAtek unit, External Secure Relay and 500mA electric lock | 12Ah: 8-10 hours |
| Relock delay time | 0 – 15 seconds |
| Weight | 5Kg |
| Dimensions | 16.5cm x 21.5cm x 11.5cm |
| Warranty | 1 Year |
Power Over Ethernet (PoE)
Our ACTAtek terminals can now support “Power Over Ethernet” to power the unit with a single network cable (Rj-45). Ideal for situations where it is difficult to locate a standard power source.
The PoE product includes two units: an Injector and a Splitter. An Injector inserts current into the unused wires in a standard network cable (pins: 4, 5, 7 and 8) allowing the cable between the Injector and the Splitter to transfer power and network signals simultaneously. The maximum distance between the Injector and Splitter can reach 100m/328ft, as defined by the IEEE 802.3 standard.(See the Solution Options.)
By eliminating the need for power cords, PoE has following benefits:
- Cost saving
The cost of deploying PoE is much lower than a traditional electrical circuit.
- Ease of network planning
The system designer has more flexibility to locate network devices. Independence from power outlets makes it easier to relocate devices or obtain the best performance, e,g: fine-tuning the RF coverage of an AP.
- Steady Wireless LAN connectivity
PoE allows a Wireless Access Point to be placed close to the antenna, thus avoiding signal loss over antenna cable.
- Provides low-voltage DC power over existing RJ-45 cabling to a device with an Ethernet port
- Distance up to 100 meters
- Protects devices from possible damages due to power-surges
- Work with EIA568, category 5, 4-pair cables for 10Base-T or 100Base-TX
| Category 5 pin power usage | -: Pin 4, 5 +:Pin 7, 8 |
| Output voltage, current | POE-100S-12V: DC 12V, 1A |
| Ethernet connector | RJ-45 |
| Ethernet data rate | 10/100Mbps |
| Number of devices that can be powered | 1 |
| Ethernet data cable | TIA/EIA-568, Category 5/5e cable |
| Dimensions (W x D x H) | 64.5 x 42.3 x 20.4 mm |
| Emission | FCC class B, CE-mark |
PoE Package List including:
1.AC-DC Adapter (15V OUTPUT,1A) x 1 connect to Injector
2.Injector x 1
3.Splitter x 1
4.Different size of Power Cable x 3 support connecting to ACTAtek
6.RJ-45 x 1
7.User Manual
3G GSM / WiFi Gateway Modem
The ACTAtek Wireless Data Gateway 3G modem is the true wireless access router. It offers mobile broadband WAN HSDPA connection with data rate up to 7.2Mbps. On Local Area Network (LAN), it supports both the wireless WiFi 802.11b/g and wired Ethernet 10/100Mbps connections.
Unlimited Mobility
ACTAtek 3G modem offers an instantaneous internet share access over Wi-Fi connections. A true wireless solution, fixed telephone line or cable connection is NOT needed. It is designed with ease of use in mind. A true plug and play wireless network solution, just insert the service provider SIM card for an instant internet hotspot or home wireless network. Settings and configurations can be done through simple and intuitive web based administration.
Ethernet Port
Take advantage of the built-in 10/100 Ethernet Switch to jump start your own network. You can share files, printers, hard drive space and other resources.
Wireless Access Point
Built-in Wireless (802.11b/g) Access Point lets you connect more PCs and allow your whole network to share high-speed Internet connection without running wires.
SIM Card Compartment
Standard SIM Card slot for a Mobile Broadband SIM Card (available separately from your Mobile Broadband service provider)
WiFi Adapter/Router
With the external and compact wireless module, ACTAtek now support wireless connection providing superior flexibility when building a wireless environment. This allows the ACTAtek to be accessed via Wi-Fi network directly.
Set up wireless network anywhere, anytime
Wireless Ethernet adapter: Flexible and Practical
Allow ACTAtek go wireless Configuring the Wireless Module in Ad-hoc mode for peer-to-peer data transmission.
The Wireless Module by default will search and connect to the AP/router with the strongest signal and allows ACTAtek to wirelessly communicate with any GPRS- or Wi-Fi enabled Pocket PC, PDA or cell phone, laptop, etc. within Wi-Fi network.
Moreover, you are now able to send personalized messages directly to cell phones via SMS or to email directly when a user clocks in. Leave messages for your staff when you are out on a business trip when they clock in the morning. Or emergency messages can be sent via email during holdup situations!!
- Expand or virtually re-deploy your network anywhere, anytime on demand
- Compatible with all IEEE 802.11b and 802.11g devices
- Operate as an client device, bridging the Ethernet and WLAN
- Connect the ACTAtek to the existing wireless network
- Support roaming to other IEEE 802.11b/g compliant APs connected to Ethernet networks to extend network coverage
- Hardware Platform: PC
- Form Factor: External
- Connectivity Technology: Wireless
- Networking Feature: Wireless access point
- Data Link Protocol: IEEE 802.11b, IEEE 802.11g
- Network Transport Protocol: TCP/IP
- Network Remote Management Protocol: HTTP
- Network Data Transfer Rate: 54 Megabits Per Second
- 65 x 20.7 x 15.4 mm (WxDxH)
ACTAtek Agent 2
ACTAtek Agent 2 is primarily used to download the event logs from the remote ACTAtek device in real time and without any hassle. It saves time and administrative efforts in backing up the data from the ACTAtek to a central computer.
- Easy setup and configuration in minutes.
- Real Time for transfering Event Logs.
- Supports SQL CE , SQL , MySQL ,TEXT/CSV databases
- Connects to maximum 150 ACTAtek terminals.
ACTAtek Agent2 is a Web based middleware to help poll out the event log data from remote ACTAtek device back to the backend database in real time. This will save time and administrative efforts on backup the data from the ACTAtek to the backend database. The backend database which ACTAtek Agent2 support are MS SQL CE/ SQL /MySQL /TEXT&CSV files. This will enable the 3rd party software/application to be easily integrated with ACTAtek device in a minute.
- Web Based application ,and easy setup / configuraton in minutes
- Support different database: MS SQL CE/ SQL / MySQL /TEXT&CSV files connection for easy integration with 3rd software/application
- Operation mode: real time mode
- Log View: check the polling out data in real time
- Free software (to be provided for free upon request)
- Built-in web server
- Built-in MS SQL CE database
- Support other datanase e.g. MS SQL CE/ SQL /MySQL /TEXT&CSV files
ACTAtek Agent Log Viewer
Once successfully installed Agent2 and have ACTAtek devices registered with it, the administrator can Login to Agent2 ,and then go to “Log Viewer” to check the polling out data in real time. The data collected include the User ID, Time entry, Event ID and Terminal serial number. This data can either be manipulated in Access Database to generate time attendance reports, or exported to third party applications, including payroll and other HR software via back-end database integration.
ACTAtek Agent2 via 3G/GPRS/GSM Modem
ACTAtek SOAP/ API
One of the major strengths in the ACTAtek ID Management Platform is its Application Program Interface (API). This ACTAtek SOAP/API is based on the Microsoft SOAP Toolkit. ACTAtek offers a free ACTAtek SOAP API SDK that can be used to develop middleware interfaces between the ID Management Platform (Client) and vertical market software applications.(Server-based applications)
In order to allow our client to build their application software (ex. Access Control, Time Attendance, Payroll, HR, etc.) around the ACTAtek ID Management Platform, we offer a free set of SOAP/API tools (examples included) to ease the development process. Software engineers require a basic knowledge of programming in XML and TCP/IP network. The required downloads of manual and samples coded can download via our technical support team or contact out regional office for more information.
The ACTAtek SOAP/API will contain information on writing applications using the ACTAtek SOAP interface. This also contains datatype definitions, WSDL information and sample code in Microsoft Visual Basic 6.0, C, Microsoft Visual Basic .Net 2003/2005/2008 and Sun Microsystem’s JAVA.
- Simple SOAP (Simple Object Access Protocol) based API supports the majority of commonly used languages (C/C++, Visual Basic, Java, etc.)
- Simple to use commands
- Sample code with demo examples
SOAP: provides a XML based infrastructure for exchanging structured and typed information between peers in a decentralized, distributed environment.
WSDL(Web Service Definition Language (WSDL): WSDL, in general, is an XML file describing the details of how to call the Web Service it pro-vides. In ACTAtek, the WSDL file can be accessed through the following URL:http:///ACTAtek.wsdl

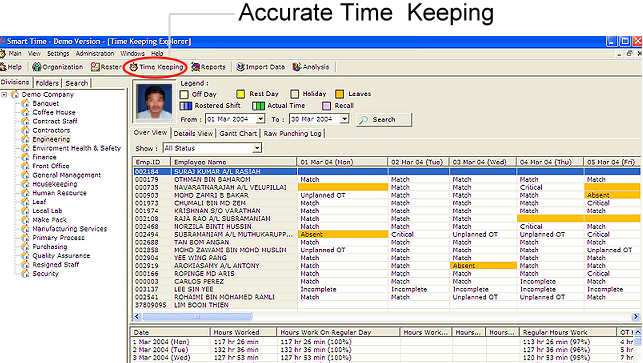

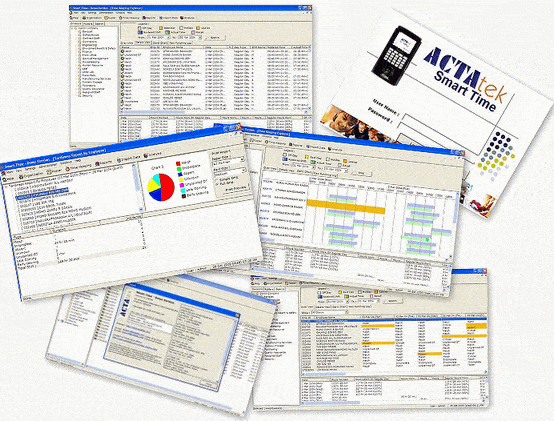

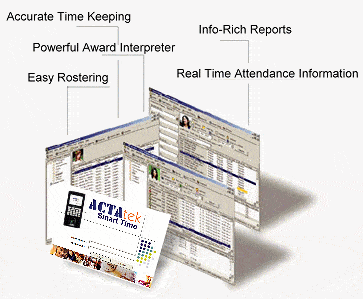

ACTAtek SmartTime
ACTAtek SmartTime, a full featured enterprise level Time and Attendance software incorporating labor cost management and job rostering facilities in one solution.
- MS SQL Server Support with Database Export functions
- SmartTime Management Decision Support tool allows businesses to plan and implement their workforce more effectively and efficiently.
- Comprehensive Time Attendance reports and detailed summary.
ACTAtek SmartTime
ACTAtek SmartTime application had been developed to help achieve the full potential of your business with easy to use rostering facilities and accurate time keeping for smart real-time report analysis.
ACTAtek Smart Time’s Management Decision Support tool allows businesses to plan and implement their workforce more effectively and efficiently. SmartTime delivers the tools that allow managers to reduce administration costs, run multiple projects on schedule and within budget while at the same time increasing work productivity.
ACTAtek believes that the key components of all Labor Force Management such as Personnel Details, Roster Scheduling, Time & Attendance and Payroll should be a straightforward process that deserves a simplified software solution that offers unparalleled features, performance and value. Consider the switch to ACTAtek SmartTime and see how your business can benefit from our smart solution for Enterprise level labor management.
- Unlimited employees, departments and levels of sub-departments
- User friendly interface.
- Personalized layout and settings.
- Flexibility in employee classification
- Customizable security access levels
- User definable awards interpreter
- “One Click” roster generator makes it easy to define jobs and classes.
- Multiple shift pairings in a single day
- Real time reporting for accurate daily analysis.
- Suite of reports to generate including Time Card Reports, Trend Reports etc.
- Compare actual versus plan for labor hours & costs
- Smart time keeping status to assist users making decisions
- Seamless Payroll integration
- Tightly integrates with the ACTAtek platform for maximum compatibility.
Entry Level (*Employee less then 300 and daily transaction less then 750)
Server hardware Spec
- Intel Core 2 Processor E5200 (2.50GHz, 800FSB, 2MB)
- 1GB RAM
- 160GB SATA Hard Drive
- 100MB Network Card
Server Software Spec
- windows XP Professional sp2
- .net framework 1.1
- .net framework 1.1 sp1
- .net framework 2.0
- .net framework 2.0 sp1
- MS installer 3.1
- MSSQL 2005 Express Edition
Client hardware Spec
- Intel Pentium 4 Processor
- 1GB Ram
- 160GB Hard Drive
- 100MB Network Card
Client Software Spec
- windows XP sp2
- .net framework 1.1
- .net framework 1.1 sp1
- .net framework 2.0
- .net framework 2.0 sp1
- MS installer 3.1
A. LAN connection:
B. WAN connection (multi-branches):

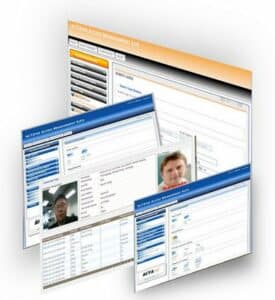

ACTAtek Access Manager
The ACTAtek Access Manager Suite (ACTAtek AMS) is a web-based server application that offers time attendance and access control reporting and analysis at one centralised database.
With ACTAtek AMS, administrators can generate different kind of reports according to the data captured directly from the ACTAtek terminals or add/delte/edit users data from web-based user management page and then push the updated data to remote ACTAtek devices in real-time.
Demo Username: admin
Demo Password: 1
Combined with its award winning hardware, the ACTAtek AMS is a powerful client/server application that allows you to streamline reporting and HR management or change access control group using your browsers only. The ACTAtek AMS enables the user to generate a variety of Time Attendance and Access Control reports that are calculated automatically by the software to generate a list of reports which includes:
- Access In/Out Reports
- Daily Punctuality Reports
- Absent Reports
- Late Reports
- Emergency Fire Safety Roll-Call Reports
In order to help our customers stay healthy,and stay safe,the below are two new functions of AMS introuced under the COVID-19 pandemic period.
Healthcare report :The report is generated for contact tracing of COVID-19 and other infectious diseases . (screenshot 1, screenshot#2)- Crowd control group:It allows control of number of people in any room, office and whole property. Similarly, supermarkets can limit shoppers in the stores. (screenshot )
Key Benefits of the ACTAtek™ AMS Software
• Web Based Management – With its web based technology, users can remotely manage and gather information of the Time Attendance hardware from any location at any time via Internet browser e.g. I.E.,Firefox,Safari,Opera etc.
• Easy to Use Interface – Easy to install and use with its simplistic interface.
• Generate Attendance Reports Easily – Manage your company’s employees effectively and efficiently with automated report generation over a specific time frame.
• Detailed Employee Status Reports – Check status, personal employee information and administer access rights.
• Consolidate your Employees – Software database capacity is capable of holding up to 30,000 users which depends on the storage space of the database server.
Cost Savings With Hardware & Software Included
The ACTAtek™ All-In-One package combines all the necessary hardware and software into one allowing you considerable costs compared to rivals which normally charge for both separately. The ACTAtek™ AMS Software integrates with the ACTAtek™ All-In-One device allowing easy log facilities as well as Time Attendance & Punctuality reports which can be remotely accessed over the internet.
Software Requirements:
- Windows Server 32bit/64bit or Windows 10 32bit/64bit
- Microsoft SQL Server for Database Server(MS SQL EX 2008 or above supported)
- Microsoft .Net 2.0 /3.5 / 4.0 runtime
Hardware Requirements:
- CPU: Intel Core 2 Duo 2.6GHz or higher
- Memory: 4GB
- Storage: 20 GB free
- Ethernet: 100 Base-T
Overview of system diagram:
| ACTAtek AM- Options for remote registration of user data enrollment | |
|---|---|
| ACTATek USB LogiPrint |  |

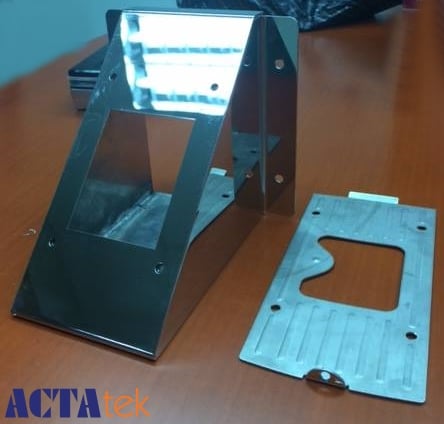

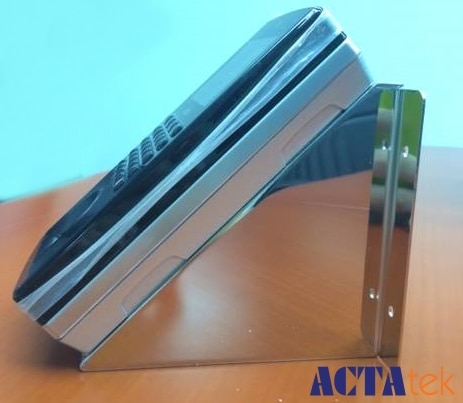

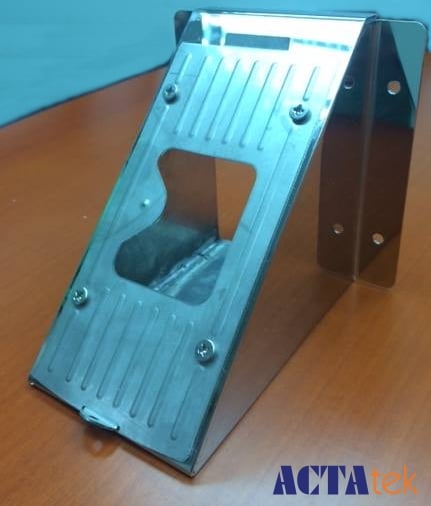

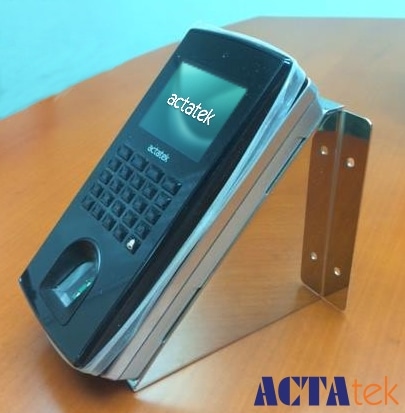

ADA compliance mounting bracket
ADA compliance mounting bracket

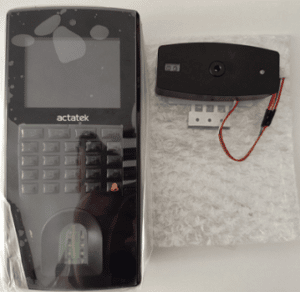

ACTAtek Temsen
ACTAtek Temsen is a medical-grade infrared human body thermometer, it has been carefully developed for accurate, safe, fast, and contactless human body temperature measurements in a simply way.
ACTAtek Temsen uses IR thermopiles which is the same technology as the handheld IR temperature detection unit.
ACTAtek Temsen is quipped with a high-precision proximity sensor. ACTAtek Temsen detects the distance to make sure the object is in the measurable range for temperature reading.
Power supply: 12VDC
Interface: RS232 or RS485
Measuring range: 35.0 °C – 42.8 °C
Abnormal alert: 37.5 °C – 38 °C Red LED Lights
Fever alert: 38 °C – 42.8 °C Red LED Blinks
Measuring distance: 10CM – 25CM
Accuracy: +/-0.2 °C
Speed: 600mS
Click the below example file to open a new window.
Click the below example video to open a new window ,and watch it at Youtube.

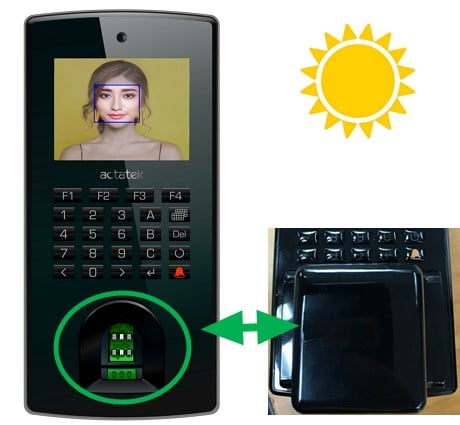

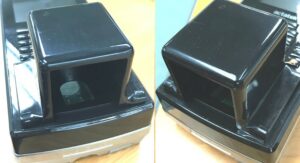

Fingerprint sensor cover
The fingerprint sensor cover provides an ideal solution for terminals where they are heavily exposed to bright light.
Barcode Slot Reader
ACTAtek Barcode Slot Reader is a contact card solution using barcode technology which can had been successfully integrated with ACTAtek Unit to provide the user another option without changing the existing contact card.
This small barcode slot reader can read the most commonly used barcode types such as UPC/EAN/JAN, Code 128, Code 39, Interleave 25 and codabar. It is an ideal solution when you have limited in space. Through the RS232 interface, it works perfectly with ACTAtek device to read the contact card. Price/performance is great with a life-cycle of up to 1,000,000 passes and a scan rate up to 1,000 mm per second.
- 90mm bar code slot reader
- RS232 interface
- Reading speed of 100-1000mm/sec
- Bi-directional
- scanning height: 10.5mm
- Light speed: IR LED 940nm
- Weight approx 240g
- Light Source : IR 940nm
- Operating Voltage: DC 5V ±5%
- Power Consumption: 80mA
- Sensor Photo Diode
- Scanning Speed : 100-1000mm
- Scanning Height : 10.5mm
- Resolution : 0.15mm (6mil)
- Interface : RS232
- Ambient Light : 10000 LUX Max. (Fluorescent lamp)
- Reading Indicator: Beeper
- Operating Temp. : 0 °C to 40 °C
- Storage Temp. : -20 °C to 60 °
- Relative Humidity : 20% to 85% (Non-Condensing)
- Housing Material : ABS Plastic
- Color : Black
- Cable Straight: 5 feet
- Dimension : 90 x 29 x38 mm
- Weight Approx. :120g
Below is the sample diagram on how Barcode Slot Reader ca work with ACTAtek.
Simple 1-2-3 step:
Step1.Add Smart Card User
Step2.Swap the barcode card
Step3.Add Smart Card User successfully
Magnetic Strip Reader
ACTAtek Magnetic Strip Reader is a contact card solution using magnetic card technology which can had been successfully integrated with ACTAtek Unit to provide the user another option without changing the existing contact card.
When you are limited in space, this small magnetic strip reader is an ideal solution which is well designed with badge length 90mm and also conform with ISO 7810-7813,JISII standards. This magnetic stripe reader is also perfectly compatible with variety of bar code types. Through the RS232 interface, it works perfectly with ACTAtek device to read the contact card. Price/performance is great with a life-cycle of up to 1,000,000 passes and a scan rate up to 1,000 mm per second.
- Track read: ISO 1,2,3 (ATA, ABA, THRIFT/MINTS)
- Triple track, 1st, 2nd & 3rd tracks
- RS232 interface (Black) connected to ACTAtek device
- Record density of up to 210BPI
- Capacity of up to 107 characters 5 bits/character
- Cable: straight 5ft
- Weight Approx 220g/150g
- Operating Voltage DC 5V ±5%
- Power Consumption 65mA
- Scan Rate 100~1000mm per second
- Track Information Tripe Tracks (1&2&3 Tracks)
- Interface RS232
- Life Cycle 300,000passes(1,000,000 passes is optional)
- Dimention (mm) 90x29x36 mm
- Weight (g) Approx. 150g
- Color Black
- Read/Write Read(High/Low Coercive)
Below is the sample diagram about how Magnetic Strip Reader can work with ACTAtek device..
Simple 1-2-3 step:
Step1. Login to device’s console menu to add Smart Card User.
Step2.Swap the Magnetic Strip card
Step3.Add Smart Card User successfully
EM Lock
This fail-safe Electromagnetic Lock design with no mechanical parts but magnetic force to secure and release the doors, suitable for use in areas which required access controlled or egress such as exit door.This EM lock had been tested by ACTAtek and you may purchase it as a whole sales package.
We offer up to 800 pounds holding force with jumper pin selectable for 12V or 24V DC dual input voltage and can be applied with access control, and with the full range of optional brackets, it can be installed on all type of door frames such as Hollow, Wooden and frameless glass door. It is the best choice for electronic security industry and system integrators. More optional functions are available in EM-350 midi electromagnetic lock series.
- Offers up to 800 LBS Holding Force.
- Full range optional brackets available.
- Anodized aluminum housing.
- Adjustable mounting plate for easy installation.
- Dual voltage 12 or 24 VDC (selectable)
- Anti-Residual magnetism design
- Complete mounting hardware included.
- Voltage Tolerance: ±15%
- Current Draw: 500mA@12Vdc, 250mA@24Vdc
- (at temperature 20°C)
- Magnetic bond sensor monitor output (EM-350M)
- (SPDT rated 0.25A@12V DC), remotely monitors the door
- lock or unlock status. (N.C. Output–Door opened; N.O.
Output–Door closed)
- Operating Temperature: -10~55°C (14~131°F)
- Humidity: 0~95% non-condensing.
- Lock’s surface Temperature (when the power is on):
- Holding Force: Up to 800 lbs (363 Kg)
- Dimensions:
- Magnet:(L) 270, (W) 48, (D) 29 mm
- Armature Plate:(L) 185, (W) 45, (D) 14 mm
- Mounting Plate:(L) 268, (W) 45, (D) 11 mm
- Special Finishes for magnet and armature plate: Zinc
- Epoxy Potting Compound: E87252 (S), UL94V-0
- Weight (Approx.): 3.0 Kg
Break Glass
This break glass is used for emergency door release to cut off the EM Lock power to open the door.
This break glass had been tested by ACTAtek for emergency door release purpose such as fire.
- Emergency glass break
- Available in red or green
- Rated voltage: 12/24V DC/220V AC optional
- Consumption: 10W
- SPL: 103dB/1m
- Measurement:470 x 285 x 205mm
Exit Push Button
Plastic PVC Door Exit Push Button
- The Plastic PVC Exit Push Button to activate an electric strike from a receptionists desk or mount inside next to the door for quick emergency exit.
- Door Exit Button is compatible with most access control/locking devices.
- Includes two mounting screws.
- Standard structure: Plastic panel and button
- Application: Door, Gate, Exit, Automation Control.
- Dimensions: 86Lx86Wx20H(mm)
Standard Structure: Fireproof Material,
Current Rating: 3A@36VDC Max
Output Contact: NO\NC\COM
Mechanical Life: 500000 tested
Optional Accessories: Concealing Box
Suitable for Door: Hollow Door
Operating temp: 10~+55(14-131F)
Operating Humidity: 0-95% (non- condensing)
Panel Material: Fireproof Material
Weight: 0.15kg
Contactless Push Button
The Contactless Push Button can be used to release a door from inside via an electromagnetic mechanism. It is designed with both Normally Close (NC) and Normally Open (NO) circuit.
- To release door from inside via electromagnetic mechanism.
- Designed with both Normally Close (NC) and Normally Open (NO) circuit
Door Strike
Non-Fail Safe and Fail Secure Electric Door Strike
A fail safe electric strike needs power to keep it locked. A fail secure electric strike stays locked even without power. The most common by far is a fail secure. When using a fail secure electric strike even without power it stays locked from the outside coming in. For egress or getting out, a door knob or lever on the lock allows for safe exit. If you must use a fail safe electric strike don’t forget to back it up.
- Dimensions : 160mmL x 25mmW x 31mmD
- Voltage: 12V OR 24VDC/AC
- Modes : FAIL SAFE OR FAIL SECURE.
- Current :400mA / 12 VDC(FAIL SECURE); 200mA/12VDC(FAIL SAFE).
- Face Plates : STEEL (PAINTED)
- Body : STAINLESS STEEL
- CE APPROVED
External I/O Board
External I/O Board
Used in conjunction with the ACTAtek3 unit, the External I/O board provides an additional layer of security for access control systems when the ACTAtek3 terminals are exposed to general access. An encrypted serial link from the ACTAtek3 unit connected to the External I/O board ensures the door release mechanism cannot be operated directly. This means that even when there is a vandal attack or someone removes the ACTAtek3 terminal by force, the External I/O board Secure Relay will maintain operation and keep the door mechanism locked against unauthorized access.
- Plug&play-Easy instalaltion and configuration
- Provide extra Input/Output to the extension of ACTAtek3
- Support standard Weigand 26bit output to be able to work with 3rd party or existing controller based access control system
Note:Once ACTAtek3 is connected to External I/O board via RS232,the ACTAtek3 built-in Door Strike1 will put over to use the External I/O board Door Strike 1 ,and also enable Door Strike 2 to config under ACTAtek3 Web UI.
Stationary long range reader
ACTA-D190-UHF Stationary long range reader
ACTA-D190-UHF has a built-in high sensitivity 8dbi antenna, and by using an RS485 serial communication interface bits interface to work with ACTAtek3 device, it can remotely connect and communicate with terminal equipment.
In addition, the design also helps to reduce power consumption and save energy, which is compliant to the trend of environmental protection and carbon reduction. It can also be applied to parking lot management and security control, and other relevant management.
- Electronic tag compliant with EPC Gen (ISO18000-6C) standard
- Maximum power output is 27.9dBm (adjustable)
- Supports antennas of 8dBi gain; has a read range of over 10 meters
- Developed patented design to reduce EMI radiation
- Allowed to operate in long-range dense-reader mode, compatible with Gen 2 standard
- Automatic matching of output impedance of the antenna impedance
- Adopts a lookup table method to achieve frequency hopping spread spectrum
Operating Voltage 12V
Antenna Gain 8 dbi
Antenna Connection 50 ohm U.FL.
Transmitting Power 27.9 dBm (Adjustable)
Communication RS485
Operating Frequency 902-928 MHz
Supported Transponders EPC Gen2(ISO 18000-6C)
Modulation PR-ASK,ASK
Current Consumption < 1A
Temperature Range Operating -20C to +55C, Storage -20C to +85C
Receiving sensitivity -85 dBm
Reading range (Avg.) > 10M
Dimension( L x W x H ) 228 x 228 x 52.3 mm
Relative Humidity 5-90%
Ingress Protection IPX6
RFID UHF Long Range Integrated Reader
MODEL NO:：ACTA-UHF-COMBO
ACTA-UHF-COMBO UHF RFID Reader base on new generation reader technology platform development which is combine UHF RFID advanced technology and many years reader application base experience. This reader is more stable and can use in various applications
- High performance, easy installation
- Built-in 12 dBi antenna ensures long range reading
- Provides all kinds of communication interfaces
- Waterproof and sunshine defending, idea for outdoor applications
Supported RFID Tag Protocols:
- EPC Class1 Gen 2; ISO 18000-6C
| Items | Parameter |
| Frequency | US（902～928MHz）, China（920～925MHz）, EU（865～868MHz）, other frequency select. |
| Supported RFID Tag Protocols | ISO18000-6C, EPC Class1 Gen2 |
| Reader Protocols | RFID reader protocol, firmware upgradable |
| RF Power | 0～30dBm adjustable |
| Sensitivity | -80dBm |
| Antenna | 12dBi linear polarization antenna |
| Read Speed | Multi tag-200pcs/second, single tag 2000 times/minute |
| Reading Range | Up to 12 m |
| Processor | ARM CORTEX M3 100M CPU |
| Memory | 16KB tag data memory |
| Data Interface | RS485 |
| 1 set input and 1 set output（TTL),1 set relay | |
| Power Supply | DC +9V～+15V |
| Indicators | Buzzer |
| Environment Rating | IP65 |
| Working Temp. | -20～60℃ |
| Weight | 2kg |
| Dimensions | 440*440*68.6mm |
| Certifications | FCC, CE |
| Color | Gray |
| Housing | ABS |
Applications：
1.Intelligent traffic management such as ETC, custom clearance, parking lot, and automatic weighing
2.Logistics such as container management, pallet management, and asset tracking
3.Ticket business and access control
Stationary long range reader (High Sensitivity )
ACTA-D390-UHF Stationary long range reader (High Sensitivity )
ACTA-D390-UHF A high-performance, high sensitivity UHF RFID reader with integrated installation, it is innovative, strong and durable, and provides the best signal coverage and read rates, applicable to any environment. With built-in antenna of 11dBi broadside gain and 24.9dBm RF modules, it is suitable for security control, and can be combined with applications and products such as power locks .
- Maximum power output is 24.9dBm (adjustable)
- Electronic tag compliant with EPC Gen (ISO18000-6C) standard
- Supports antennas of 11dBi gain; has a read range of over 10 meters
- Developed patented design to reduce EMI radiation
- Supports data output via communication interfaces including RS485
- Allowed to operate in long-range dense-reader mode, compatible with Gen 2 standard
- Automatic matching of output impedance of the antenna impedance
- Adopts a lookup table method to achieve frequency hopping spread spectrum
Operating Voltage 12V
Passive long range reader
ACTA-E190-UHF Passive long range reader
ACTA-E190-UHF Built-in high sensitivity 6.5 dBi gain antenna and 25 dBm RF module with data output via RS485 interface., it can be remote link communications with terminal equipment.
- Bulit-in 25 dBm RF module and 6.5 dBm gain antenna
- Electronic tag compliant with EPC Gen (ISO18000-6C) standard
- Invention patented design to reduce EMI radiation
- Supports data output via communication interfaces including RS485
- Intergrated output design for easy installation
- Wall mount design can be applied to indoor access control
Operating Voltage 12V
UHF Card
ACTA-KTG-1002-UHF UHF card
ACTA-KTG-1002-UHF is compliant with ISO18000-6C (EPC Class 1 GEN2) standard. Professional antenna design achieves high gain, high sensitivity and farther read range.
- 860MHz~960MHz
- ISO1800-6C(EPC Class 1 GEN2)
- Contains high-gain antenna, offering a read range of more than 8 meters
- The size of it is designed to be the same as a typical access card (85.6mm x 54mm x 0.8mm)
- suitable for applications related to ACTAtek access control.
Compliance Standard EPC Class1 Gen2
UHF Combo Card
ACTA-KTG-1003-UHF UHF Combo Card
ACTA-KTG-1003-UHF is compliant with ISO18000-6C (EPC Class 1 GEN2) standard. Professional antenna design achieves high gain, high sensitivity and farther read range.
- 860MHz~960MHz and 13.56MHz
- ISO1800-6C(EPC Class 1 GEN2)
- The size of it is designed to be the same as a typical access card (85.6mm x 54mm x 0.8mm)
- suitable for applications related to the access control.
- Contains high-gain antenna, offering a read range of more than 8 meters
Operating Mode Passive
UHF Vehicle Tag
ACTA-KTG-1004-UHF UHF Vehicle Tag
ACTA-KTG-1004-UHF is compliantwith ISO18000-6C (EPC Class 1 GEN2) standard. Professional antenna design achieves high gain, high sensitivity and farther read range.
- 860MHz~960MHz
- ISO1800-6C(EPC Class 1 GEN2)
- Contains high-gain antenna, offering a read range of more than 8 meters
- Heatproof, cold resistant, waterproof, shockproof, and anti-glare interference
- Suitable for access control in outdoor environment
Compliance Standard EPC Class1 Gen2
